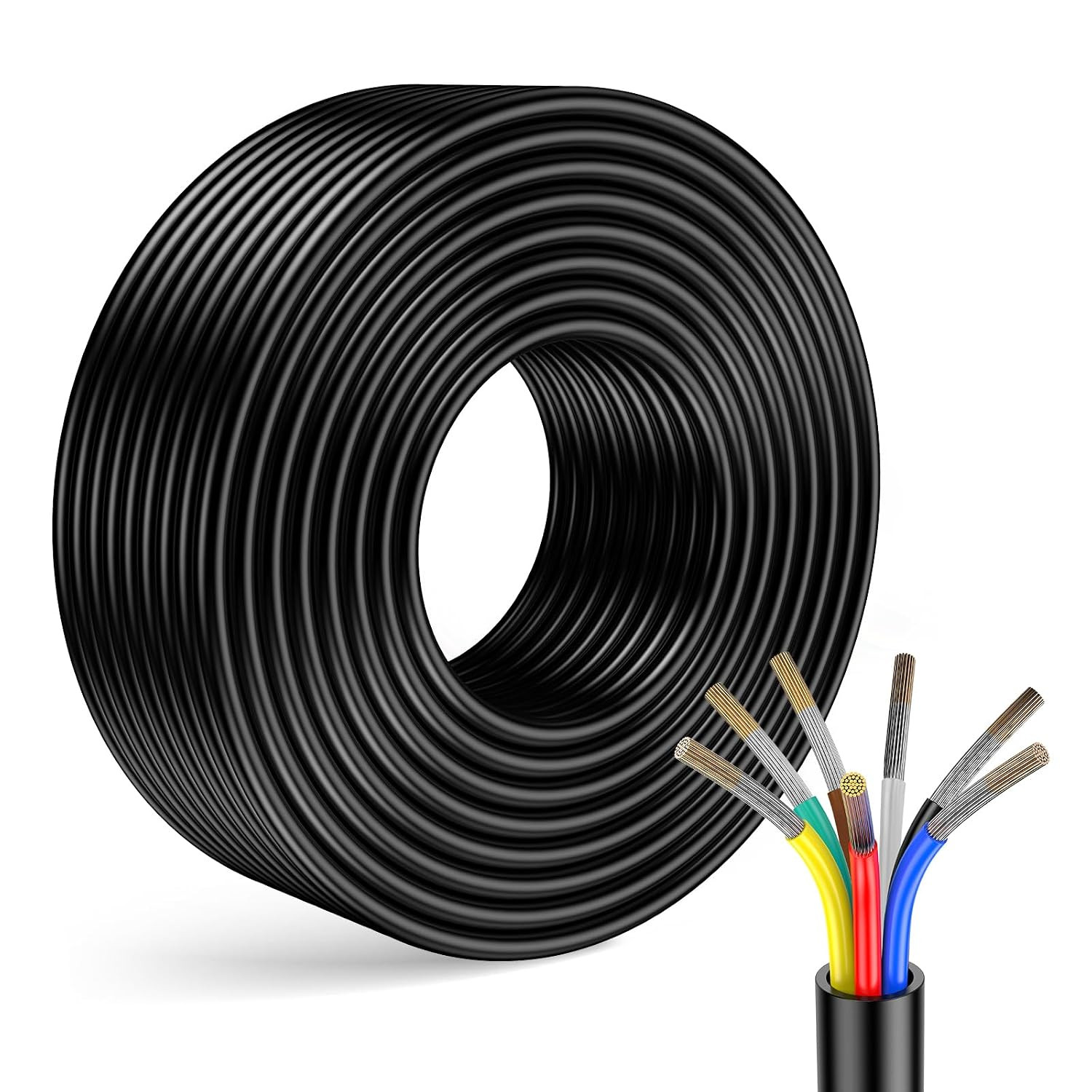

25FT 14 Gauge 7-Way Trailer Wire with Color-Coded Conductors | Built for RV, Camper, Boat and Utility Trailers with Flexible PVC Jacket and Reliable Power DeliveryDescription Color Black Strands 41 Number Of Wires 7 Wire Diameter 1.63 millimeters Material Type CCA Copper Clad Aluminum Number of Items 1 Number of Packs 1 Unit Count 1 Count Warranty Description 1 Year Warranty Included Components 1 Set 14 Gauge 7 Way Trailer Wire 25FT Model 200734 Part Number 200734 Material CCA Copper Clad Aluminum Number of Cable Strands 41 No of wires 7

Product description LIMICAR Heavy Duty 25FT 7 Way Trailer Wiring Harness Kit

Includes 25FT 14 Gauge 7 Conductor Wire.

All-in-one solution for safe and organized trailer wiring.

Built for durability, easy to install, and compatible with 12V systems.

Stranded CCA Conductors for Superior Conductivity, 7-Way Trailer Wiring

PVC Jacket with -20°C Flexibility

Each of the 7 wires uses Copper Clad Aluminum for better flexibility and conductivity. The outer layer resists UV, and water damage.

SAE Standard Color Coding 7-Way Trailer Wiring Harness Kit

Simplifies Connection to 7 Pin Systems.

Color-coded conductors (Red, Blue, White, Purple, Brown, Yellow, Green) match industry standards—less guesswork, faster wiring.

Flexible, Cuttable, and Easy to Route

7 Pin Trailer Wiring Harness 25FT Length – Perfect for Long Trailers.

Ample cable length for extended trailers. Simple to strip and route even in tight spaces.

Compatible with Multiple Trailer Types

Fits Most Trailer Types: From Utility to RV & Boat Trailers

Perfect for RVs, cargo trailers, food trucks, marine trailers, horse trailers, and more—universal 7-pin compatibility.

Features Stays Flexible in Cold Weather

Rated to -20°C (-4°F), the PVC jacket stays pliable in freezing conditions—no cracking or stiffening during winter towing.

Weather & Water Resistant

PVC jacket shields against road moisture, rain splashing, and outdoor exposure—keeping internal conductors protected in all seasons.

Performs in High Heat

Rated to +70°C (+158°F), this wire handles engine bay heat and summer road conditions without jacket softening or signal loss.

CCA Conductors, Dual PVC Layer

Stranded CCA conductors with individual PVC insulation and outer PVC jacket deliver reliable 12V performance with strong abrasion

• Does the PVC jacket resist oil or grease from trailer chassis exposure?

  PVC jacket resists road moisture, mud, abrasion, and UV during normal use. Not for prolonged oil immersion. For heavy oil areas, route wire through conduit.

• Is this CCA or pure copper wire? Will it reliably power brakes and trailer lights?

  14 AWG CCA wire reliably powers tail lights, brake lights, turn signals, and brake controller. Tinned conductors resist oxidation for stable connections.

• Is 25 feet enough for a single-axle utility trailer or small boat trailer rewire?

  25FT is ideal for trailers under 20ft. Flexible stranded wire routes through tight spaces. Each conductor pulls apart easily at split points.

• Does this wire stay flexible in freezing temperatures or crack in summer heat?

  Rated -20°C to +70°C. Stays flexible in freezing winter without cracking and handles summer heat during towing. Suitable for year-round outdoor use.

• Is this compatible with standard 7-pin connectors for RV and utility trailers?

  Fits all 7-pin connectors. SAE colors: Red/Black=12V, Blue=brakes, Brown=taillights, Green/Yellow=turns, White=ground. Works for RVs and utility trailers.

• Right-sized for short trailer builds: This 25-foot roll of 7-way trailer wire gives you exactly what single-axle utility trailers, boat trailers, and compact RV builds need — without the waste of a 50-foot roll. Pre-measured, ready to cut, strip, and route straight from the box.
• 7-pin color-coded wiring, SAE J1128 standard: Red=12V Aux Power, White=Ground, Blue=Electric Brake Controller, Yellow=Left Turn/Stop, Green=Right Turn/Stop, Brown=Tail Lights, Black=Reverse. Connect your trailer wiring harness in minutes — even first-timers get it right.
• 14 AWG CCA conductors with heavy-duty PVC jacket: Copper-clad aluminum delivers full 12V electrical performance while weighing less than solid copper — ideal for trailer wiring builds where flexibility and ease of routing matter. Jacket is abrasion-resistant, and rated from -20°C to 105°C.
• Universal 12V compatibility — RV, boat trailer, horse trailer, cargo trailer, camper, food truck, utility trailer: Works with all standard 7-pin trailer wiring harness setups. Compatible with electric brake controllers, LED tail lights, turn signals, and reverse functions on any 12V system.
• Built for short builds, backed by LIMICAR: At 25 feet, this roll is engineered for trailers under 20 feet where a larger spool wastes half your wire. Compatible with 7-pin standard harness setups; easy to cut, strip, and route into conduits or along frame rails.
